Description

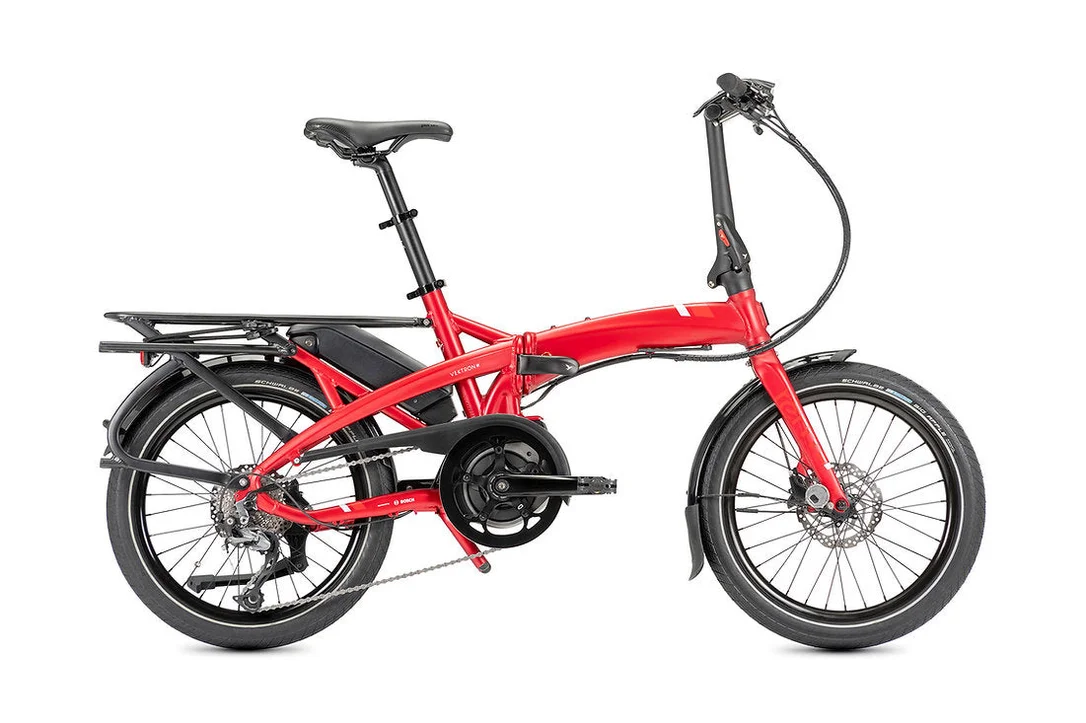

Vektron Q9 Overview
- A folding electric bike that doesn’t ride like one!
- New colors and updated styling
- Upgraded to the Bosch Active Line Plus electric drivetrain for 270% more assistance and 50 Nm of torque
- Hydraulic disc brakes for all-weather stopping power
- Updated frame with a reclining battery for a lower center of gravity and a better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
| Motor | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 20 mph (US) |
| Battery | Bosch PowerPack 400 Wh |
| Display | Bosch Purion, 4 mode selectable, walk assist |
| Charger | 100-240V, 4A (US) |
| Frame | Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies |
| Fork | Tern Tarsus, 6061-Al, hydroformed |
| Rear Shock | Not applicable |
| Front Brake | Shimano, hydraulic disc |
| Rear Brake | Shimano, hydraulic disc |
| Rear Derailleur | Shimano Alivio Shadow |
| Shift Levers | Shimano Alivio, 1 x 9 spd, trigger |
| Chain | 9 spd, DHT for eBike, GST corrosion resistant coating |
| Cassette | Shimano 11-32T, 9 spd |
| Crankset | Vektron custom, forged 6061-AL crankarm |
| Chain Ring | Spec not provided |
| Chain Guard | SKS Chainblade |
| Rims | Kinetix Comp, for disc |
| Front Hub | Shimano disc |
| Rear Hub | Shimano disc |
| Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Handlebar | Flat bar, 6061-AL, Tern Andros adapted |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux, cartridge bearings, Physis integrated |
| Grips | Velo ergonomic, lock-on |
| Saddle | Tern Porter, patented GripPad design |
| Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Pedals | MKS EZY |
| Front Light | Tern Valo Direct, 190 lumens |
| Rear Light | Herrmans H-Trace, for eBike |
| Kickstand | URSUS, rear mount |
| Rear Carrier | Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb) |
| Fenders | SplashGuard, stainless hardware |
| Bell | Aluminum |
| Lock | Not applicable |
| Mirror | Not applicable |
FRAME SIZE:: One Size
WEIGHT::48.3 lb
GEAR INCHES::33″ – 97″
FOLDING SIZE::16.5 × 33.9 × 27 in
FOLDING TIME::10 seconds
DISTANCE, SEATPOST TO HANDLEBAR::24.4 – 27.2 in
DISTANCE, SADDLE TO PEDAL::26.4 – 43.3 in
SUGGESTED RIDER HEIGHT::57.9 – 76.8 in
MAX GROSS VEHICLE WEIGHT::275.6 lb
