Description

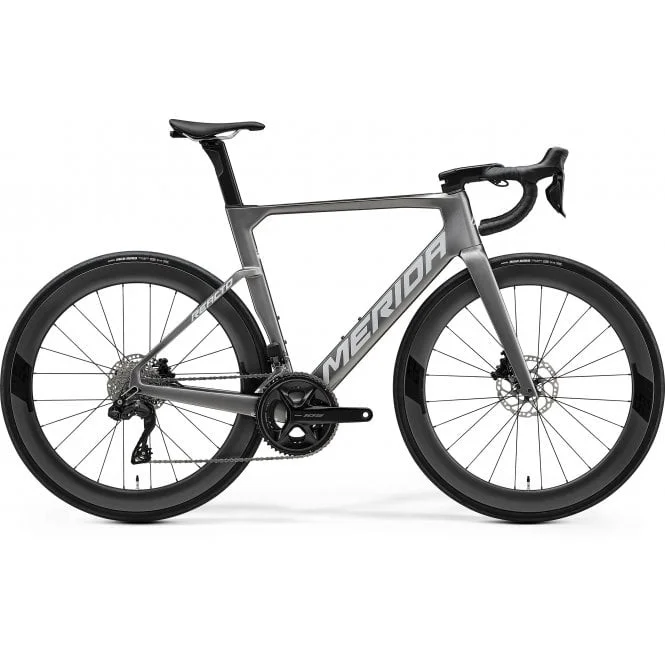

Frame: CF3 IV – carbon with the same geometry and aeroydanmic profiling as the CF5 IV with a more budget friendly carbon lay up. Tapered headtube, Disc Cooler, BB86 BB standard,142 x12mm axle standard. Max tyre size 700 x 30c
Fork: Reacto CF3 IV Disc; full carbon, tapered steerer. Max tyre size: 700 x 30c – Disc cooler technology
Headset: Merida Team SL (OP-203 neck)
Stem: Merida Expert SL 2PII; aluminium; -9 degree rise – Length – 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
Handlebar: Merida Expert CW; aluminium; 380mm (XXS-XS-S); 400mm (M-L-XL)
Grip: Merida Expert
Brake Type: Hydraulic disc
Brake Lever: Shimano 105
Front Brake: Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor
Rear Brake: Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor
Front Tyre: Maxxis Highroad; 700 x 28C; Kevlar bead; tubeless ready
Rear Tyre: Maxxis Highroad; 700 x 28C; Kevlar bead; tubeless ready
Wheel Size: 700c
Rim: Part of wheelset – Vision SC55; 19mm inner rim width; 55 mm rim depth; carbon
Spokes: Part of wheelset
Front Hub: Part of wheelset – Vision SC55 Disc brake; 100x12mm; Centerlock
Rear Hub: Part of wheelset – Vision SC55 Disc brake; 142x12mm; Centerlock
Speeds: 24
Front Derailleur: Shimano 105 Di2
Rear Derailleur: Shimano 105 Di2
Shift Levers: Shimano 105 disc Di2
Chain: Shimano CN-M6100-12
Cassette: Shimano CS-R7101; 11-34 teeth; 12 speed
Chainset: Shimano 105; FCR7100, 52-36 tooth chainset; Crank length – 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
Bottom Bracket: SM-BB72-41B, Pressfit 86.5
Saddle: Merida Expert SL; V-mount; including Merida minitool
Seat Post: Merida Team CW; Aero shape; 15mm layback; Carbon
