Description
“MOUNTAIN BIKING WITH A BOOST
THE JACK-OF-ALL-TRADES MTB, ELECTRIFIED
MAXIMIZING FUN”

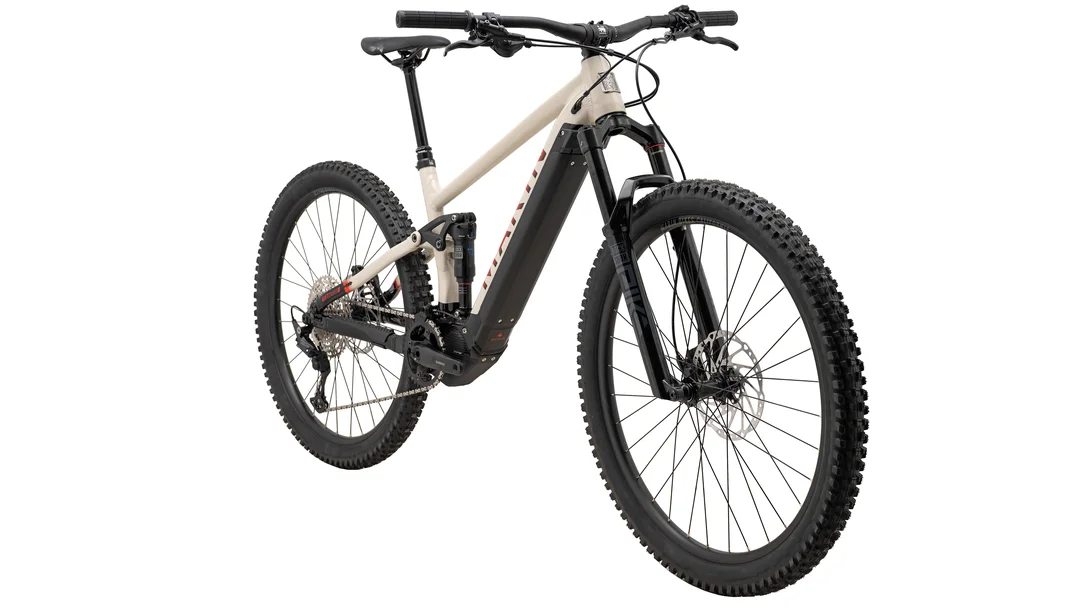

The all-new Rift Zone E1 is the result of us taking our award-winning trail 29” platform and engineering it for electrification. Rear wheel travel is increased by 10mm, and the chainstays are 10mm longer in this application, and Shimano’s proven Steps platforms help propel the rider up the trail.
Specifications
| Frame: All New Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| Suspension Fork: RockShock Pike Base 29″, Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset |
|
Rear Suspension: RockShox Deluxe Select+, Compression and Rebound Adjustment, 210×55, 25xM8 Lower and Upper Mount |
|
Rims: Marin Aluminum Double Wall, 29″ Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible |
|
Hub, Rear: Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body |
|
Hub, Front: Shimano FH-TC500, 110x15mm, Centerlock , 32H |
|
Spoke, Nipples: 14g Stainless Steel |
|
Tires: Front: Vee Tire Co. Attack HPL, 29×2.5″, Top 40 Tubeless Compatible, Overide E-Specific Casing |
|
Tires Rear: Vee Tire Co. Attack HPL, 29×2.5″, Top 40 Tubeless Compatible, Overide E-Specific Casing |
|
Derailleur, Rear: Shimano Deore, Direct Attachment, 11-Speed, SGS |
|
Shift Lever: Shimano Deore, 11-Speed, I-Spec EV |
|
Motor: Shimano EP801, 250W, 85Nm |
|
Crankset: Shimano EM600, 160mm Length, 38t Chainring |
|
Chain: KMC X-10E, Silver |
|
Cassette: SunRace 11-Speed, 11-51T |
|
Brakes: Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor, w/ Bolt on Speed Sensor |
|
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
|
Stem: Marin 3D Forged Alloy, 35mm |
|
Grips: Marin Grizzly Lock On |
|
Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2” |
|
Seatpost: TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
|
Saddle: Marin eMTB |
|
Pedals: Marin MTB Plastic |
|
Battery: BBT-EN806 Internal 630Wh |
|
Display: Shimano SC-E600 |
|
Switch: SW-EN600L Left Hand Switch for Assist Mode Change |
|
Extras: Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, 2A; Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle |
|
Range, Charging Time: 19-50 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions) |
Geometry
|
Size |
S | M | L | XL |
|---|---|---|---|---|
| A: Stack | 606.98 | 614.04 | 625.1 | 634.16 |
| B: Reach | 445 | 465 | 485 | 515 |
| C: Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| D: Headtube Length | 100 | 110 | 120 | 130 |
| E: Seattube Angle | 77° | 77° | 77° | 77° |
| F: Seattube Length | 390 | 400 | 425 | 435 |
| G: Toptube Effective | 585.13 | 607.22 | 629.32 | 661.41 |
| H: BB Height | 353.5 | 353.5 | 353.5 | 353.5 |
| I: BB Drop | 32 | 32 | 32 | 32 |
| J: Chainstay | 440 | 440 | 440 | 440 |
| K: Wheelbase | 1198.29 | 1222.52 | 1246.74 | 1280.97 |
| L: Standover Height | 693.65 | 696.01 | 709.94 | 719.93 |
| M: Fork Offset | 44 | 44 | 44 | 44 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 160 | 160 | 160 | 160 |
All lengths in millimeters
