Description

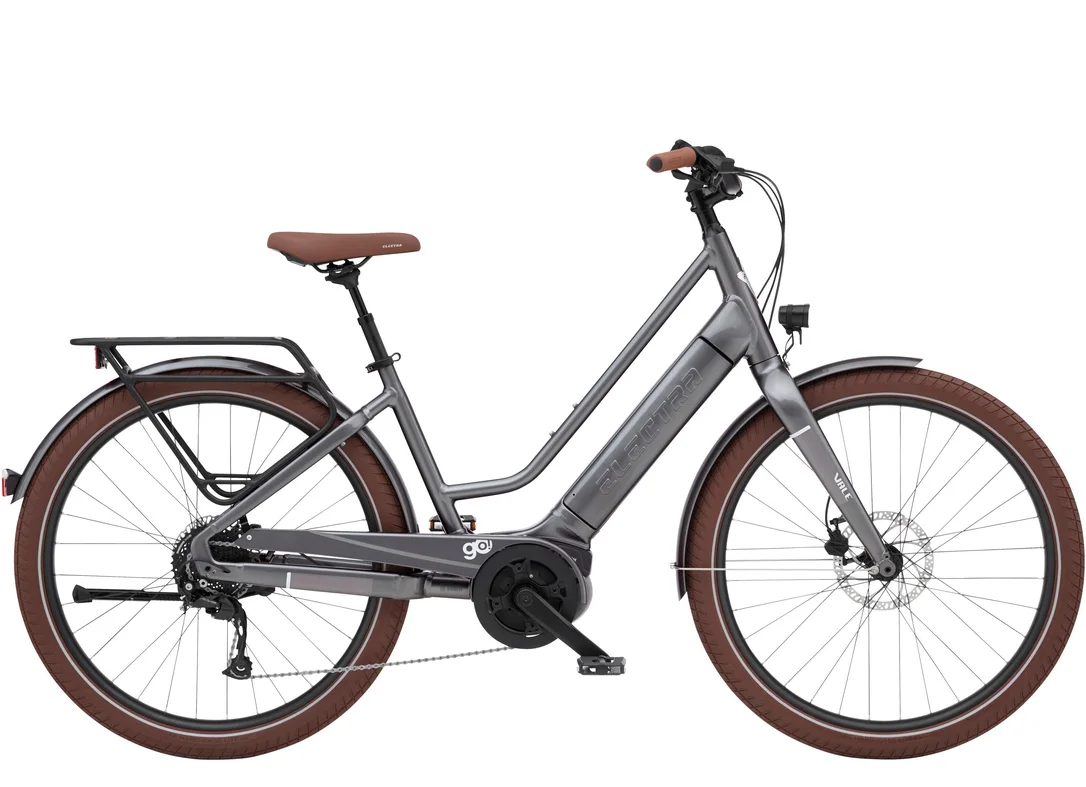

The Vale Go! 9D EQ will comfortably handle anything from everyday errands to daily commutes to fun getaways. This e-bike features a powerful Bosch Active Line Plus motor, fully integrated battery and a step-thru frame. Bosch’s Kiox display delivers Bluetooth connectivity and advanced rider information. Most importantly it’s an Electra, so it’s a blast to ride.
- The Vale Go! 9D EQ features our patented Flat Foot Technology® and Bosch Active Line Plus motor for optimal comfort and control.
- Easily monitor rider data such as speed, battery charge and turn-by-turn navigation in one place with the hi-resolution Bosch Kiox color display.
- The step-thru frame provides easy on and off maneuverability.
- Equipped with color-matched fenders and LED lights, this e-bike is ready for all conditions.
- Turn your e-bike into a me-bike by adding a basket, bell or helmet. The e-ssentials, of course.
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.
| Frame |
6061-T6 aluminum w/ patented Flat Foot Technology® |
| Fork |
Alloy hydroformed |
| Tire |
Bontrager E6 Hard-Case Lite, reflective strip, 27.5×2.40” |
| Hub Rear |
Alloy low-flange w/6-bolt disc, 32h, 12mm thru-axle |
| Rim |
Alloy double walled 27.5”x32h |
| Skewer Front |
Alloy thru-axle, 12mm x 143mm |
| Skewer Rear |
Alloy thru-axle, 12mm x 174mm |
| Shifter |
Shimano Alivio M3100, 9 speed |
| Rear Derailleur |
Shimano Alivio M3100, long cage |
| Crank |
ProWheel alloy, 170mm length |
| Cassette |
Shimano HG200, 11-36, 9 speed |
| Chain |
KMC E9T EPT anti-rust |
| Chainring |
Steel 40T w/alloy guard |
| Brake |
Tektro hydraulic disc |
| Brake Rotor |
Tektro, 6-bolt, 160mm // Tektro, 6-bolt, 180mm |
| Pedal |
Resin platform w/grip tape tread |
| Saddle |
Selle Royal Essenza Plus |
| Seatpost |
Alloy suspension post 27.2x400mm, 40mm travel |
| Handlebar |
Alloy custom bend |
| Stem |
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| Headset |
FSA e2 integrated |
| Grips |
Electra Vale custom ergo Kraton w/alloy locking collars |
| Cargo Rack |
Rear MIK compatible rack |
| Light |
Spanninga Axendo XE, LED, headlight // Spanninga Presto XE, LED, taillight |
| Kickstand |
Adjustable length alloy kickstand |
| Battery |
Bosch PowerTube 500Wh |
| Motor |
Bosch Active Plus, 250 watt, 50 Nm, 20mph or 32km/h |
| Charger |
Bosch standard 4A, 100-240V |
Geometry Chart
| Frame Reach |
31.1 |
| Frame Stack |
60.6 |
| Head Angle |
68.0° |
| Head Tube Length |
21 |
| Seat Tube |
45.6 |
| Seat Tube Angle |
67.0° |
| Standover |
51 |
| Wheelbase |
119 |
| Wheel Size |
27.5″ |
